Wacker Neuson SM60 Mini Skid Steer - Kohler Gas Engine, 24.9 HP, 35.5" wide w/out bucket
Write a Review
Wacker Neuson
Wacker Neuson SM60 Mini Skid Steer - Kohler Gas Engine, 24.9 HP, 35.5" wide w/out bucket
Wacker Neuson SM60 Mini Skid Steer - Kohler Gas Engine, 24.9 HP, 35.5" wide w/out bucket
Wacker Neuson SM60 Mini Skid Steer - Kohler Gas Engine, 24.9 HP, 7 ft wide

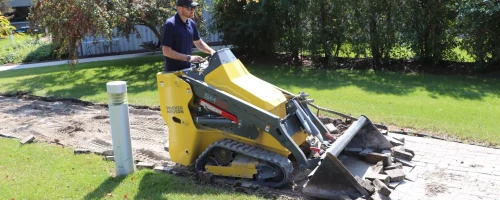

The SM60 is purpose designed to maximize its ability to fit into the tightest spaces making it useful at times and places many other machines simply aren't.
Highlights
- Compact Design
- Industry Leading Safety Features
- All Day Comfort
Standard Components
General
24.9 hp Kohler Command Pro ECH749 petrol engine, Air-cooled, T4F, V-Twin, with Electronic Fuel Injection (EFI)
ISO Control Pattern Joystick Controls

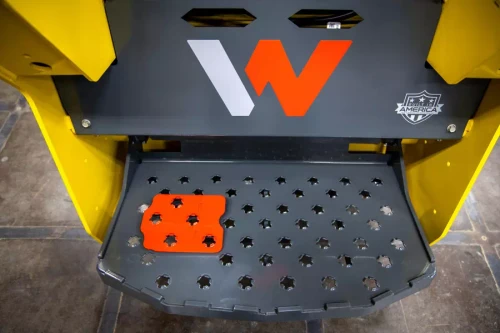

Operator Presence Foot Pedal

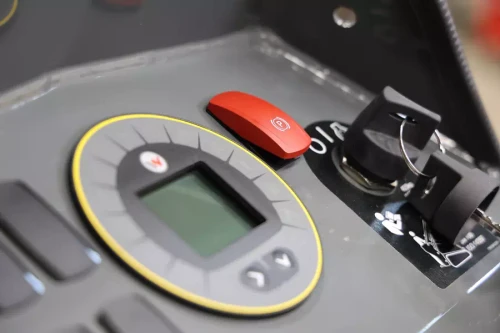

3" mono-color display
Standard Auxiliary Hydraulics - 12.4 gpm
9.1" [230mm] Wide Tracks
|
OPERATING FLUIDS |
Metric |
Imperial |
|
Fuel Tank capacity |
53,0 l |
14,0 gal US |
|
NAMEPLATE |
Metric |
Imperial |
|
Company |
PUM |
PUM |
|
ENGINE |
Metric |
Imperial |
|
Cylinder |
2 |
2 |
|
Power rating max. |
18,6 kW |
24,9 hp |
|
Cooling |
air cooling |
air cooling |
|
Engine Manufacturer |
Kohler |
Kohler |
|
Cylinder capacity |
747 cm3 |
45,6 Inch3 |
|
Operating Engine speed |
1.800 1/min |
1.800 1/min |
|
Operating power |
18,6 kW |
24,9 hp |
|
Maximum torque |
54,2 Nm |
40,1 lb/ft |
|
Engine type |
Gasoline engine |
Gasoline engine |
|
MECHANICAL - OUTPUT DETAILS |
Metric |
Imperial |
|
Ground Pressure |
0,30 bar |
4,4 psi |
|
Breakout force |
11,11 kN |
2.497,6 lbf |
|
Break Out Force Lift Arm |
6,45 kN |
1.450,0 lbf |
|
Travel speed |
6,3 km/h |
3,9 m/H |
|
HYDRAULIC |
Metric |
Imperial |
|
Flow rate |
46 l/min |
12,2 gal/mi |
|
Auxiliary hydraulics relief pr |
210 bar |
3.045,0 psi |
|
MECHANICAL DETAILS |
Metric |
Imperial |
|
Length without Bucket |
1.920 mm |
75,6 " |
|
Track Width |
178 mm |
7,0 " |
|
Length with Bucket |
2.501 mm |
98,5 " |
|
Bucket roll back at height max |
92 ° |
92 ° |
|
Length of Track on Ground |
826 mm |
32,5 " |
|
Underclearance |
173 mm |
6,8 " |
|
Operating weight |
1.252,0 kg |
2.760,2 lb |
|
Bucket height at height max. |
2.635 mm |
103,7 " |
|
Angle of departure |
23 ° |
23 ° |
|
Buck. dump angle at height max |
37 ° |
37 ° |
|
Height |
1.392 mm |
54,8 " |
|
Overall width without bucket |
902 mm |
35,5 " |
|
Dump reach at max. height |
684 mm |
26,9 " |
|
Max bucket roll back at ground |
25 ° |
25 ° |
|
Bucket Hinge Pin Height |
1.920 mm |
75,6 " |
|
CHASSIS |
Metric |
Imperial |
|
ROC at 35% Tip Load |
273 kg |
601,9 lb |
|
ROC at 50% Tip Load |
390 kg |
859,8 lb |
|
Tip Load |
780 kg |
1.719,6 lb |
