Wacker Neuson SM100 Mini Skid Steer - 24.7 HP Yanmar Turbo Diesel, 35.5" wide w/out bucket
Write a Review
Wacker Neuson
Wacker Neuson SM100 Mini Skid Steer - 24.7 HP Yanmar Turbo Diesel, 35.5" wide w/out bucket
Wacker Neuson SM100 Mini Skid Steer - 24.7 HP Yanmar Turbo Diesel, 35.5" wide w/out bucket
Wacker Neuson SM100 Mini Skid Steer - 24.7 HP Yanmar Turbo Diesel, 35.5" wide w/out bucket
The compact design and enhanced maneuverability of the SM100 utility track loader allows it to fit into tight spaces where other machine can’t.
Highlights
- Compact Design
- Industry Leading Safety Features
- All Day Comfort
Standard Components
General
24.7 hp [18.4 kW] Yanmar 3TNV80FT diesel engine, Water-cooled, T4F, 3-cylinder, Turbocharged, EH Joystick controls, hand and foot throttles

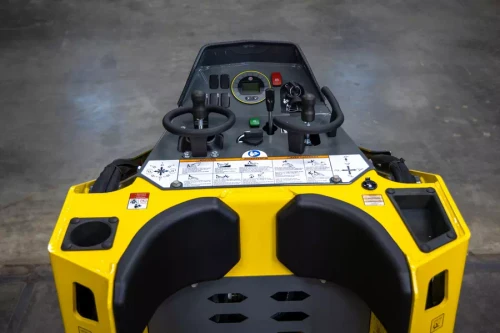

ISO Control Pattern Joystick Controls

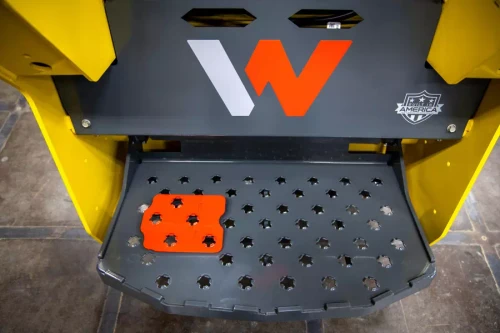

Operator Presence Foot Pedal
3" mono-color display
Standard Auxiliary Hydraulics - 13.0 gpm

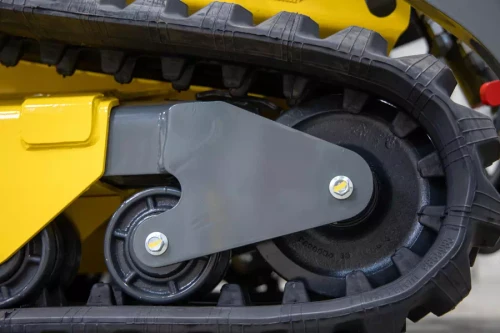

11" [280mm] Wide Tracks w/Low-mounted Undercarriage Counterweights
|
OPERATING FLUIDS |
Metric |
Imperial |
|
Fuel Tank capacity |
64,0 l |
16,9 gal US |
|
NAMEPLATE |
Metric |
Imperial |
|
Company |
PUM |
PUM |
|
ENGINE |
Metric |
Imperial |
|
Cylinder |
3 |
3 |
|
Power rating max. |
18,5 kW |
24,8 hp |
|
Cooling |
Water-cooling |
Water-cooling |
|
Engine Manufacturer |
Yanmar |
Yanmar |
|
Cylinder capacity |
1.266 cm3 |
77,3 Inch3 |
|
Operating Engine speed |
2.600 1/min |
2.600 1/min |
|
Operating power |
18,4 kW |
24,7 hp |
|
Engine Designation |
3TNV80 FT |
3TNV80 FT |
|
Maximum torque |
85,0 Nm |
63,0 lb/ft |
|
Engine type |
Diesel engine |
Diesel engine |
|
MECHANICAL - OUTPUT DETAILS |
Metric |
Imperial |
|
Breakout force - tilt |
13.827 N |
3.108.434,0 lbf |
|
Ground Pressure |
0,28 bar |
4,1 psi |
|
Breakout force - lift |
13.827 N |
3.108,4 lbf |
|
Travel speed |
8,4 km/h |
5,2 m/H |
|
HYDRAULIC |
Metric |
Imperial |
|
Flow rate |
49 l/min |
12,9 gal/mi |
|
Auxiliary hydraulics relief pr |
210 bar |
3.045,0 psi |
|
MECHANICAL DETAILS |
Metric |
Imperial |
|
Length without Bucket |
2.141 mm |
84,3 " |
|
Track Width |
230 mm |
9,1 " |
|
Length with Bucket |
2.742 mm |
108,0 " |
|
Bucket roll back at height max |
92 ° |
92 ° |
|
Length of Track on Ground |
1.093 mm |
43,0 " |
|
Underclearance |
198 mm |
7,8 " |
|
Operating weight |
1.497,0 kg |
3.300,3 lb |
|
Bucket height at height max. |
1.595 mm |
62,8 " |
|
Angle of departure |
25 ° |
25 ° |
|
Buck. dump angle at height max |
42 ° |
42 ° |
|
Height |
1.478 mm |
58,2 " |
|
Overall width without bucket |
902 mm |
35,5 " |
|
Dump reach at max. height |
557 mm |
21,9 " |
|
Max bucket roll back at ground |
25 ° |
25 ° |
|
Bucket Hinge Pin Height |
2.176 mm |
85,7 " |
|
CHASSIS |
Metric |
Imperial |
|
ROC at 35% Tip Load |
453 kg |
998,7 lb |
|
ROC at 50% Tip Load |
647 kg |
1.426,4 lb |
|
Tip Load |
1.295 kg |
2.855,0 lb |
