Wacker Neuson - 5100080507 BPS1340AW, Single-Direction Gasoline Plate
Wacker Neuson - 5100080507 BPS1340AW, Single-Direction Gasoline Plate

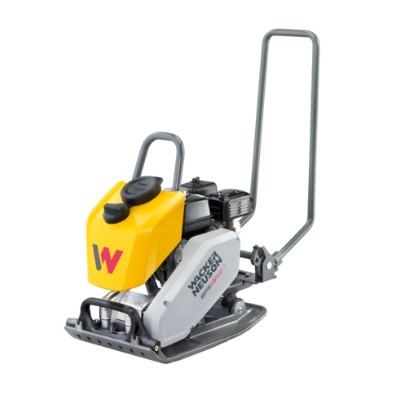

Wacker Neuson BPS1340AW, Single-Direction Gasoline Plate Compactor with Water and Honda Engine

(No reviews) Write a Review
$2,725.00
$1,941.56
SKU: 5100080507
Weight: 165.30 LBS
Width: 15.70 (in)
Height: 26.10 (in)
Depth: 36.60 (in)
Shipping: $69.00 (Fixed Shipping Cost)
Adding to cart… The item has been added
Wacker Neuson BPS1340AW, Single-Direction Gasoline Plate Compactor with Water and Honda Engine

Wacker Neuson BPS1340AW, Single-Direction Gasoline Plate Compactor with Water and Honda Engine

$2,725.00
$1,941.56
Description

Wacker Neuson BPS1340AW, Single-Direction Gasoline Plate Compactor with Water and Honda Engine

The Wacker Neuson 5100080507, BPS1340AW Single-Direction Gasoline Plate is a powerful and efficient compaction machine designed for professional soil and asphalt applications. It features a Honda engine and large water tank (2.11 gallon) with efficient sprinkler system. Built for durability and performance, it delivers strong compaction force, smooth operation, and excellent maneuverability for both open areas and confined job sites. Order the Wacker Neuson BPS1340AW today and get the job done right.



ENGINE

Imperial

Metric
Fuel management Carburettor Carburettor
Inclined position max. 20,0 ° 20,0 °
Engine operating mode four-stroke four-stroke
Operating Engine speed 3.600 1/min 3.600 1/min
Fuel consumption 0,3 GPH US 1,00 L/Std
Standard (Power max.) SAE J1349 SAE J1349
Standard (Effective power) ISO 3046 IFN ISO 3046 IFN
Tank capacity 0,7 gal US 2,50 l
Nominal Engine speed 3.600 1/min 3.600 1/min
Electrode Distance 0,028 - 0,032" 0,70 - 0,80 mm
Oil filling max. 0,2 gal US 0,60 l
Effective power 3,5 hp 2,6 kW
Air cleaner dry air filter dry air filter
Power rating max. 3,5 hp 2,6 kW
fuel type Gasoline Gasoline
Cooling air cooling air cooling
Exhaust-gas limit US Phase 3 US Phase 3
Oil specification SAE 10W-30 SAE 10W-30
Engine speed (Power max.) 3.600 1/min 3.600 1/min
Starter type Recoil starter Recoil starter
Operating power 2,8 hp 2,1 kW
Oil filling min. 0,2 gal US 0,60 l
Engine type Gasoline engine Gasoline engine
Cylinder 1 1
Engine Manufacturer Honda Honda
Standard (Operating power) ISO 3046 IFN ISO 3046 IFN
Cylinder capacity 7,2 Inch3 118 cm3
Spark plug(s) NGK BP-6 ES NGK BP-6 ES
Oil volume incl. filter change 0,2 gal US 0,60 l
Engine Designation GX120 GX120



MECHANICAL - OUTPUT DETAILS

Imperial

Metric
Vibrations 5.880 1/min 5.880 1/min
Gradeability 36,4 % 36,4 %
Transmission FKR FKR
Centrifugal force 2.923 lbf 13,000 kN
Vibrations (Hz) 98 Hz 98 Hz
Area capacity 6.716,7 ft2/h 624 m2/h
Forward Running 1,4 fps 26,00 m/min



ENVIRONMENT DATA

Imperial

Metric
Operating temperature range 5 - 113 °F -15 - 45 °C
Sound level LpA (Standard) EN 500-4 EN 500-4
Sound power LWA, guaranteed 105,0 dB(A) 105,0 dB(A)
Storage temperature range 5 - 104 °F -15 - 40 °C
HAV summation (average value) 15,1 ft/s2 4,6 m/s2
Uncertainty in measurement HAV 1,6 ft/s2 0,5 m/s2
HAV summation (Standard) EN 500-4 EN 500-4
Sound level LpA 95,0 dB(A) 95,0 dB(A)
Sound power LWA (Standard) EN 500-4 EN 500-4
Sound power LWA, measured 104,0 dB(A) 104,0 dB(A)



MECHANICAL DETAILS

Imperial

Metric
Operating weight 165,3 lb 75,0 kg
Underclearance 26,1 " 663 mm
Height 26,1 " 663 mm
Width 15,7 " 400 mm
Length Drawbar in op. pos. 36,6 " 930 mm
