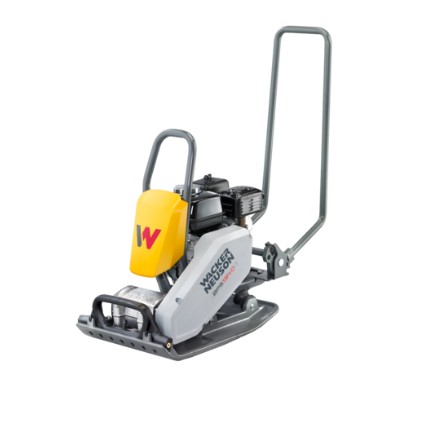

Wacker Neuson BPS1340A, Single-Direction Gasoline Vibratory Plate Compactor with Honda Engine
Wacker Neuson BPS1340A, Single-Direction Gasoline Vibratory Plate Compactor with Honda Engine

Wacker Neuson BPS1340A, Single-Direction Gasoline Vibratory Plate Compactor with Honda Engine

(No reviews) Write a Review
$2,545.00
$1,813.00
SKU: 5100080508
Weight: 147.70 LBS
Width: 15.70 (in)
Height: 26.10 (in)
Depth: 36.60 (in)
Shipping: $75.00 (Fixed Shipping Cost)
Adding to cart… The item has been added
Wacker Neuson BPS1340A, Single-Direction Gasoline Vibratory Plate Compactor with Honda Engine

Wacker Neuson BPS1340A, Single-Direction Gasoline Vibratory Plate Compactor with Honda Engine

$2,545.00
$1,813.00
Description

Wacker Neuson BPS1340A, Single-Direction Gasoline Vibratory Plate Compactor with Honda Engine

The Wacker Neuson 5100080508, BPS1340A Single-Direction Gasoline Plate is a powerful and compact compactor designed for efficient soil and asphalt applications. With its robust build, reliable Honda engine, and high compaction force, it delivers smooth, consistent results even in tight or demanding job sites. Take your compaction performance to the next level. Order now and get the job done faster and more efficiently.



ENGINE

Imperial

Metric
Fuel management Carburettor Carburettor
Inclined position max. 20,0 ° 20,0 °
Engine operating mode four-stroke four-stroke
Operating Engine speed 3.600 1/min 3.600 1/min
Fuel consumption 0,3 GPH US 1,00 L/Std
Standard (Power max.) SAE J1349 SAE J1349
Standard (Effective power) ISO 3046 IFN ISO 3046 IFN
Tank capacity 0,7 gal US 2,50 l
Nominal Engine speed 3.600 1/min 3.600 1/min
Electrode Distance 0,028 - 0,032" 0,70 - 0,80 mm
Oil filling max. 0,2 gal US 0,60 l
Effective power 3,5 hp 2,6 kW
Air cleaner dry air filter dry air filter
Power rating max. 3,5 hp 2,6 kW
fuel type Gasoline Gasoline
Cooling air cooling air cooling
Exhaust-gas limit US Phase 3 US Phase 3
Oil specification SAE 10W-30 SAE 10W-30
Engine speed (Power max.) 3.600 1/min 3.600 1/min
Starter type Recoil starter Recoil starter
Operating power 2,8 hp 2,1 kW
Oil filling min. 0,2 gal US 0,60 l
Engine type Gasoline engine Gasoline engine
Cylinder 1 1
Engine Manufacturer Honda Honda
Standard (Operating power) ISO 3046 IFN ISO 3046 IFN
Cylinder capacity 7,2 Inch3 118 cm3
Spark plug(s) NGK BP-6 ES NGK BP-6 ES
Oil volume incl. filter change 0,2 gal US 0,60 l
Engine Designation GX120 GX120



MECHANICAL - OUTPUT DETAILS

Imperial

Metric
Vibrations 5.880 1/min 5.880 1/min
Gradeability 36,4 % 36,4 %
Transmission FKR FKR
Centrifugal force 2.923 lbf 13,000 kN
Vibrations (Hz) 98 Hz 98 Hz
Area capacity 6.716,7 ft2/h 624 m2/h
Forward Running 1,4 fps 26,00 m/min



ENVIRONMENT DATA

Imperial

Metric
Operating temperature range 5 - 113 °F -15 - 45 °C
Sound level LpA (Standard) EN 500-4 EN 500-4
Sound power LWA, guaranteed 105,0 dB(A) 105,0 dB(A)
Storage temperature range 5 - 104 °F -15 - 40 °C
HAV summation (average value) 15,1 ft/s2 4,6 m/s2
Uncertainty in measurement HAV 1,6 ft/s2 0,5 m/s2
HAV summation (Standard) EN 500-4 EN 500-4
Sound level LpA 93,0 dB(A) 93,0 dB(A)
Sound power LWA (Standard) EN 500-4 EN 500-4
Sound power LWA, measured 104,0 dB(A) 104,0 dB(A)



MECHANICAL DETAILS

Imperial

Metric
Operating weight 147,7 lb 67,0 kg
Underclearance 26,1 " 663 mm
Height 26,1 " 663 mm
Width 15,7 " 400 mm
Length Drawbar in op. pos. 36,6 " 930 mm
