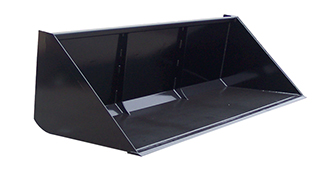

The TMS/Haugen MDBT 60 - 60" Std Capacity, 60" Bucket Width, 90 cu. yd.Heaped Capacity for Telehandler
Haugen MDBT 60 is a std capacity bucket that is perfect for construction site clean up and light material. It is made with a 3/4" x 6" high carbon cutting edge that is extremely durable. The quick attach bucket is available in standard and large capacity, making it versatile for any project. The standard sizes are 60", 72", 84", 96" and 102". Other sizes are available upon request. This bucket is a must-have for any job site.
Note: please specify the make and model of your machine when ordering.
Model | Description | Bucket Height | Inside Depth | Bucket Width | Heaped Capacity | Weight |
---|---|---|---|---|---|---|
MDBT 60 | 60" Std Capacity | 30.0" | 38.0" | 60" | .90 cu. yd. | 665 lbs. |
MDBT 72 | 72" Std Capacity | 30.0" | 38.0" | 72" | 1.10 cu. yd. | 725 lbs. |
MDBT 84 | 84" Std Capacity | 30.0" | 38.0" | 84" | 1.35 cu. yd. | 825 lbs. |
MDBT 96 | 96" Std Capacity | 30.0" | 38.0" | 96" | 1.50 cu. yd. | 960 lbs. |
MDBT 102 | 102" Std Capacity | 30.0" | 38.0" | 102" | 1.60 cu. yd. | 1,015 lbs. |
