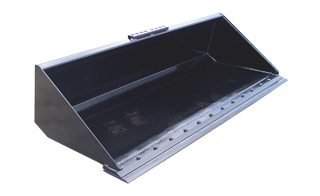

Haugen MHDB 60 - 20.5" Bucket Height, 34"Inside Depth, 60"Bucket Width Dirt Bucket for Skid Steer

SKU:
MHDB 60
Fixed Shipping Cost:
$570.00
$1,699.00
(No reviews yet) Write a Review

Haugen MHDB 60 - 20.5" Bucket Height, 34"Inside Depth, 60"Bucket Width Dirt Bucket for Skid Steer

Introducing the Haugen MHDB 60 - 20.5" Bucket Height, 34"Inside Depth, 60"Bucket Width Dirt Bucket for Skid Steer, the ultimate solution for tackling tricky dirt excavations and demanding digging jobs. MHDB 60 is made with 1/2" x 3" wear bars on the bottom of the buckets, giving you unrivaled strength and resistance against wear. Additionally, we have a 1/4" bucket wrapper and side plates with an extra gusset on the leading edge for maximum support. We understand that every job requires something different. That’s why, in our Standard Series, we give you the option of 5/8" x 8" reversible bolt-on Cutting edge, Weld-on Teeth (heavy duty buckets only), Tooth Bars and Rolled Inserts so your tool can be tailored to fit all situations. And for volume orders, we can match any hole pattern , whatever your customer requirements may be. They’ll thank you when they see how quickly your MHDB 60 handles their work.

Features ( Heavy Duty Series)

  • 1/2" x 3" wear bars on the bottom of the buckets for wear and superior strength.
  • 1/4"  bucket wrapper and side plates with an extra gusset on the leading edge.
  • 3/4" x 6 high carbon edge drilled to accept and Bolt-on Edge.
  • Heavy Duty full skid-steer quick attach plate.
  • Built in Step.

Features ( Standard Series)

  • 1/2" x 3" wear bars on the bottom of the buckets for wear and superior strength.
  • 1/4"  bucket wrapper and side plates with an extra gusset on the leading edge.
  • 3/4" x 6 high carbon edge drilled to accept and Bolt-on Edge.
  • Heavy Duty full skid-steer quick attach plate.
  • Built in Step.

Options

  • 5/8" x 8" reversible bolt-on Cutting edge.
  • Weld-on Teeth  ( heavy duty buckets only).
  • Tooth Bars.
  • Rolled Inserts.
  • On volume orders Haugen can match the hole patterns of other brands in the cutting edges and the bucket itself.  This allows dealers to order special sizes or fill demand and their OEM parts will fit all of their buckets.  Ask a Haugen rep for details.

Specifications.



Model

Bucket

Height

Inside

Depth

Bucket

Width

Heaped

Capacity

Weight
MHDB 60 20.5" 34" 60" 14.25 Cu.Ft 570 lbs
MHDB 66 20.5" 34" 66" 15.80 Cu.Ft 605 lbs
MHDB 72 20.5" 34" 72" 17.25 Cu.Ft 635 lbs
MHDB 78 20.5" 34" 78" 18.75 Cu.Ft 665 lbs
MHDB 84 20.5" 34" 84" 20.50 Cu.Ft 695 lbs
MHDB 90 20.5" 34" 90" 22.75 Cu.Ft 730 lbs
MHD 96 20.5" 34" 96" 24.50 Cu.Ft 765 lbs





Weight:
570.00 LBS
