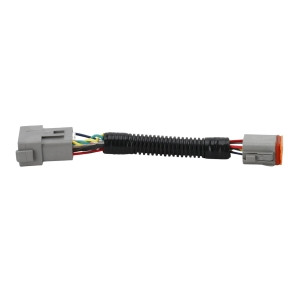

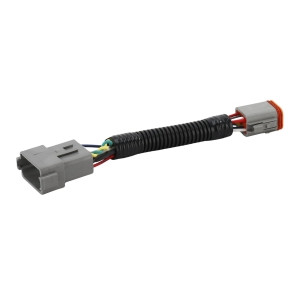

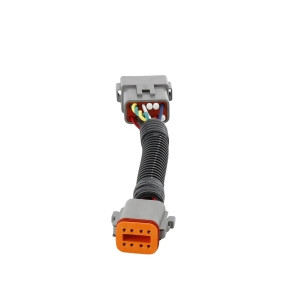

** 1292198GT is a retrofit harness adaptor conversion from 8 pin to 12 pin connector._ ** Retrofit harness is not require for units equipped with 12 pin connector._ MUST ORDER WITH 1291702GT, 1291709GT, 1291710GT, OR 1291711GT FOR COMPLETE LIFT CONNECT RETROFIT, KIT PART NUMBER DEPENDS ON REGION OF OPERATION, HARNESS CAN BE USED ON UNITS MADE AFTER BELOW SERIAL RANGES: TZ-34: TZ3415-1169 TZ-50: TZ5015-1052 AL4L: AL4L15-18 AL5L: AL5L15-127 AL4: AL415-2878 AL5 and AL5V: AL515-1616 RL4V: RL415-101 RL4: RL415-12608 to RL415-14529 RL4LED: RL4LJ-101 Z-45XC: Z4525XCF-101 / Z4525XCM-101 Z-80: Z8015-5353 S-40/45: S4015-20505 SX-135 XC: SX135H-101 S-80XC: SXCH-104 S-85XC: S85XCH-101 Z-62: Z6215A-101 / Z6216D-101 / Z6216N-101 / Z6216M-101 SX-150: SX15015H-101 SX-105 XC: SX105D-147 SX-125 XC: SX125D-101 SX-180: SX18014-150 ZX-135: ZX13515-2626 S-100HD: S100HD14D-200 S-120HD: S120HD14D-205 S-100: S10014D-902 S-120: S12014D-963 S-65XC: S65XCH-45001 / S65XCM-101 Z-34 IC/BE: Z3415-10384 / Z3415D-101 Z-45 DC/BE: Z452515A-53271 / Z452515B-4375 / Z452515D-327 / Z452516M-5453 Z-45 IC: Z452515A-53160 / Z452515B-4451 / Z452515D-327 / Z452516M-5453 Z-51: Z513015B-1352

Click Here: Genie OEM Smart-Parts Look-Up & Ordering System

With over 85,000 Genie OEM replacement parts available and same day shipping on most orders, TMS Equip can ship you the parts you need to get your Genie equipment back up and running to factory specs as fast as anyone in the business.

You can look up and order Genie parts on our easy-to-use Smart Parts website. Search by the make and model of your machine on the left-hand side of the page, enter your machine's serial number and drill down through the parts diagrams to identify your part numbers. Click on the part numbers needed and add them to your cart. You are now ready to check out through our secure credit card processing system.

To ensure this ordering system is providing parts specific to your machine, please use your machine's serial number with the application.

If you don't see your machine's parts manual online, you can email the model & serial number of your machine to Parts@TMSEquip.com, and we will send you the parts book.

Other Resources: To access Genie parts & service books, check out the following links.

SPARE PARTS & PRODUCT MANUALS

If needed, you can use the public the links below to access Genies parts lookup and service information websites.

Genie - Serial Number Smart Parts Lookup System »

Geinie - Parts Manuals »

Genie - Service Manuals »

Genie - Operator Manuals »
