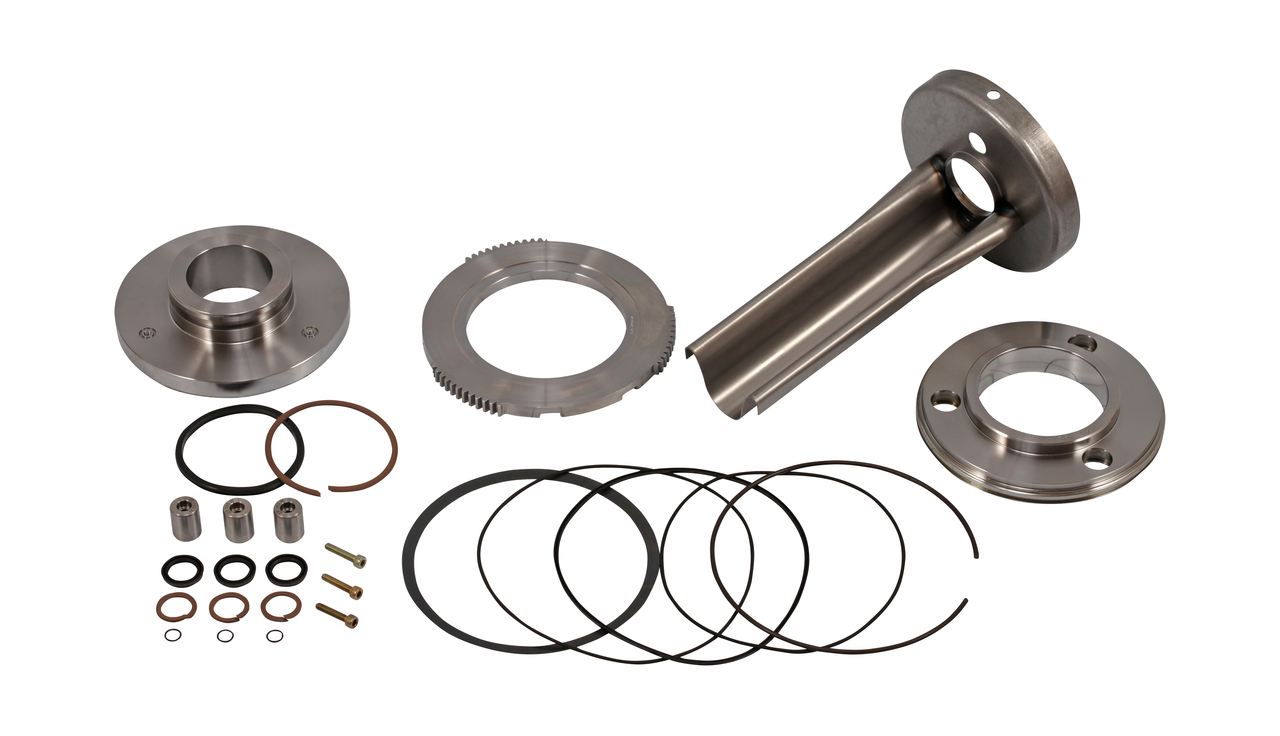

The ZF Axle Brake Seal Kit is used on various JLG SkyTrak Legacy and Lull telehandlers with ZF axles. The kit includes: one end shim, a snap ring, a sealing washer, a piston, a four-lip ring, a u-ring (piston inner), a supporting ring, an o-ring (sealing washer), a cup spring, an oil dam, a u-ring (piston outer), three (3) pressure pins, three (3) cap screws, three (3) O-ring (sealing washer pressure pins), three (3) u-rings (sealing washer pressure pins) and three (3) backup rings. The kit also includes one of part number 1319425; an o-ring. For use on SKyTrak Legacy models: 6036, 6042, 10042, 10054, Lull models: 644E-42, 944E-42, 1044C-54 Series II (For use on axles prior to S/N 679304 or prior to S/N 675668). Please verify the proper serial number range and axle install for your machine.

If you already know your JLG part numbers, you can enter them in the search box above, add them to your cart and check out through our secure shopping cart.

Click Here For: JLG OEM Smart-Parts Look-Up

With over 200,000 JLG OEM replacement parts available and same day shipping on most orders, TMS Equip can ship you the parts you need to get your JLG equipment back up and running to factory specs as fast as anyone in the business.

You can look up and order JLG parts on our easy-to-use Smart Parts website. Search by the make and model of your machine on the left-hand side of the page, enter your machine's serial number and drill down through the parts diagrams to identify your part numbers. Click on the part numbers needed and add them to your cart. You are now ready to check out through our secure credit card processing system.

To ensure this ordering system is providing parts specific to your machine, please use your machine's serial number with the application.

If you don't see your machine's parts manual online, you can email the model & serial number of your machine to Parts@TMSEquip.com, and we will send you the parts book.
