Wacker Neuson DPU110rLec970 US - Remote-Control Vibratory Plate with Compatec Compaction Control, Kohler Diesel Engine, 38.2" Width & 24,729 Lb CF
Write a Review
Wacker Neuson
Wacker Neuson DPU110rLec970 US - Remote-Control Vibratory Plate with Compatec Compaction Control, Kohler Diesel Engine, 38.2" Width & 24,729 Lb CF
Wacker Neuson DPU110rLec970 US - Remote-Control Vibratory Plate with Compatec Compaction Control, Kohler Diesel Engine, 38.2" Width & 24,729 Lb CF
Wacker Neuson DPU110rLec970 US - Remote-Control Vibratory Plate with Compatec Compaction Control, Kohler Diesel Engine, 38.2" Width & 24,729 Lb CF

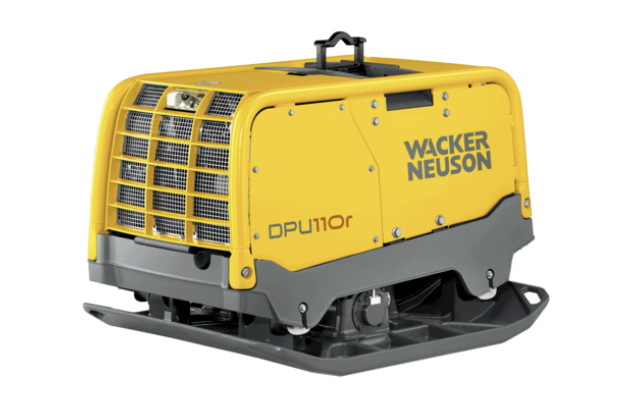

The Wacker Neuson DPU110rLec970 Remote-Controlled Vibratory Plate is equipped with a Kohler diesel engine and an electric starter. It features a 38.2" plate width, 24,729 lbs of centrifugal force, an operating weight of 1,785.7 lbs, and reversible functionality. This plate is well-suited for trench applications, as well as sheeting and bracing work. Get yours today.
Highlights
- Compamatic
- Compact dimensions, high performance
- Sturdy and durable
- Infra-red remote control with tried and tested safety features
- Variable, precise control
- Compact dimensions, high performance
- Sturdy and durable
Come with
- Vibratory plate
- Remote control
- Operator's manual
- Machine configuration instructions
|
OPERATING FLUIDS |
Metric |
Imperial |
|
Cooling fluid type |
SAE J1034: Wasser (1:1) |
SAE J1034: Wasser (1:1) |
|
Tank capacity |
11,20 l |
3,0 gal US |
|
Exciter oil volume |
1,60 l |
1,69 qt US |
|
Hydraulic fluid type |
Renolin MR 520 |
Renolin MR 520 |
|
Hydraulic fluid volume |
21,900 l |
23,1 qt US |
|
Cooling fluid volume |
4,40 l |
4,6 qt US |
|
Exciter oil type |
75W-90 API GL-4 |
75W-90 API GL-4 |
|
ENGINE |
Metric |
Imperial |
|
Inclined position max. |
25,0 ° |
25,0 ° |
|
Engine operating mode |
four-stroke |
four-stroke |
|
Operating Engine speed |
2.700 1/min |
2.700 1/min |
|
Fuel consumption |
3,30 l/h |
0,9 GPH US |
|
CO2 (NRSC) |
905,72 g/KWh |
905,72 g/KWh |
|
Standard (Power max.) |
ISO 3046-1 |
ISO 3046-1 |
|
Standard (Effective power) |
ISO 3046-1 |
ISO 3046-1 |
|
Nominal Engine speed |
2.700 1/min, 2.700 1/min |
2.700 1/min, 2.700 1/min |
|
Oil filling max. |
2,40 l |
0,6 gal US |
|
Effective power |
13,5 kW, 13,5 kW |
18,1 hp, 18,1 hp |
|
Battery capacity (nom. value) |
50 Ah |
50 Ah |
|
Air cleaner |
Dry air filter |
Dry air filter |
|
Power rating max. |
18,5 kW |
24,8 hp |
|
fuel type |
Diesel EN 590 |
Diesel EN 590 |
|
Cooling |
Water-cooling |
Water-cooling |
|
Exhaust-gas limit |
US Tier 4, null |
US Tier 4, null |
|
Oil specification |
SAE 10W-40 |
SAE 10W-40 |
|
Starter battery Voltage |
12 V |
12 V |
|
Engine speed (Power max.) |
3.600 1/min |
3.600 1/min |
|
Starter type |
E-starter |
E-starter |
|
Upper idling speed ex load |
2.800 1/min |
2.800 1/min |
|
Operating power |
12,0 kW |
16,1 hp |
|
Oil filling min. |
2,40 l |
0,6 gal US |
|
Engine type |
Diesel engine |
Diesel engine |
|
Cylinder |
3 |
3 |
|
Engine Manufacturer |
Kohler |
Kohler |
|
Standard (Operating power) |
ISO 3046-1 |
ISO 3046-1 |
|
Cylinder capacity |
1.028 cm³ |
62,7 Inch3 |
|
Oil volume incl. filter change |
2,40 l |
0,6 gal US |
|
MECHANICAL - OUTPUT DETAILS |
Metric |
Imperial |
|
Vibrations |
3.600 1/min |
3.600 1/min |
|
Forward running |
28,00 m/min |
1,5 fps |
|
Transmission |
ELHY |
ELHY |
|
Gradeability |
32,0 % |
32,0 % |
|
Centrifugal force |
110,000 kN |
24.729 lbf |
|
Vibrations (Hz) |
60,0 Hz |
60,0 Hz |
|
Area capacity |
1.630 m²/h |
17.545,3 ft2/h |
|
HYDRAULIC |
Metric |
Imperial |
|
Max. perm. hydraulic pressure |
230,0 bar |
3.335,0 psi |
|
Operating pressure hydraulics |
193,0 bar |
2.798,5 psi |
|
ELECTRICAL SYSTEM |
Metric |
Imperial |
|
Remote Control Bat. Capacity |
8 h |
8 h |
|
Recommended Battery Typ |
Ni-MH 7,2V/2000mAh |
Ni-MH 7,2V/2000mAh |
|
Charging Time |
2,00 h |
2,00 h |
|
Remote Control Range |
20 m |
65,6 Foot |
|
ENVIRONMENT DATA |
Metric |
Imperial |
|
Operating temperature range |
-10 - 50 °C |
14 - 122 °F |
|
Sound level LpA (Standard) |
EN 500-4 |
EN 500-4 |
|
Sound power LWA, guaranteed |
109,0 dB(A) |
109,0 dB(A) |
|
Storage temperature range |
-20 - 50 °C |
-4 - 122 °F |
|
Sound level LpA |
89,0 dB(A) |
89,0 dB(A) |
|
Sound power LWA (Standard) |
EN 500-4 |
EN 500-4 |
|
Sound power LWA, measured |
107,0 dB(A) |
107,0 dB(A) |
|
MECHANICAL DETAILS |
Metric |
Imperial |
|
Lenght Drawbar in op. pos. |
1.207 mm |
47,5 in |
|
Operating weight |
810,0 kg |
1.785,7 lb |
|
Height |
833 mm |
32,8 in |
|
Underclearance |
830 mm |
32,7 in |
|
Width |
970 mm |
38,2 in |
