Close-up of the HATZ 68.4 HP diesel engine powering the Multiquip MQ600HTP trash pump.

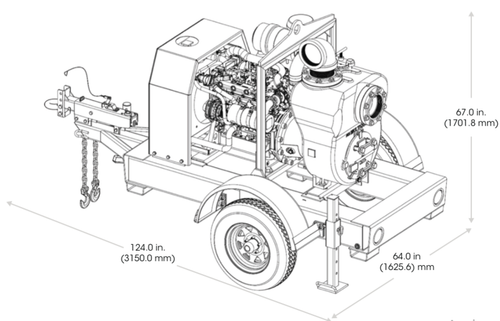

Multiquip MQ600HTP showing the 6-inch adjustable discharge port and pump housing
The Hatz 4H50 engine is supported by the LOFA™ 620 Control Box, which monitors multiple engine operating conditions
The curve data represents the designed performance of the pump models, but does not take into account the many natural physical forces that act upon the pump in supporting the job.
Close-up of the HATZ 68.4 HP diesel engine powering the Multiquip MQ600HTP trash pump.
Multiquip MQ600HTP showing the 6-inch adjustable discharge port and pump housing
The Hatz 4H50 engine is supported by the LOFA™ 620 Control Box, which monitors multiple engine operating conditions
The curve data represents the designed performance of the pump models, but does not take into account the many natural physical forces that act upon the pump in supporting the job.

Multiquip MQ600HTP - 6" Trash Pump w/ 68.4 HP HATZ Diesel Engine, 1600 GPM & Trailer Mounted

(No reviews) Write a Review
$50,798.00
$39,367.00
SKU: MQ600HTP
Availability: Shipping to a US 48 State Business Address
Weight: 2,850.00 LBS
Width: 64.00 (in)
Height: 70.00 (in)
Depth: 125.00 (in)
Shipping: $995.00 (Fixed Shipping Cost)
Adding to cart… The item has been added
Multiquip MQ600HTP - 6" Trash Pump w/ 68.4 HP HATZ Diesel Engine, 1600 GPM & Trailer Mounted

Multiquip MQ600HTP - 6" Trash Pump w/ 68.4 HP HATZ Diesel Engine, 1600 GPM & Trailer Mounted

$50,798.00
$39,367.00
Description

Multiquip MQ600HTP - 6" Trash Pump w/ 68.4 HP HATZ Diesel Engine, 1600 GPM & Trailer Mounted

The Multiquip MQ600HTP is a trailer-mounted 6-inch trash pump powered by a 68.4 HP HATZ diesel engine, delivering up to 1,600 GPM with a maximum lift of 25 feet and maximum head of 150 feet. Its cast-iron construction, ductile iron impeller, stainless steel wear plate, and ability to handle solids up to 3 inches make it suitable for demanding applications such as construction drainage, irrigation, flood control, mining, excavation, and municipal water management. Order now.

Features

  • Pumps up to 1,600 gallons (6,055 liters) a minute.
  • Maximum head 150 feet (45.7 meters).
  • Powered by HATZ Tier IV FINAL 4-cylinder, Turbo Charged diesel engine.
  • Supported by BOSCH common rail fuel injection system - w/triple fuel filtration.
  • Full featured shock mounted LOFA 620 Control Panel.
  • DOT Certified Trailer w/ integral 40-gallon (151 liters) fuel cell.
  • Large clean out cover and wear-resistant ductile cast iron impeller.
  • Stainless steel wear plate.
  • Abrasion-resistant oil lubricated tungsten/carbide seal.
  • Pumps solids up to 3 inches (75 mm) in diameter.
  • Approximate running time of 22 hours.
  • 3" Pintle Hitch

Unit Specifications
Suction x Discharge 6 x 6 in
152 x 152 mm
Max. Water Capacity 1600 gpm 6055 lpm
Max. Lift 25 ft 7.6 m
Max. Head 150 ft 46 m
Max. Pressure 64.9 psi 447 kPA
Max. Solid Intake 3 in 76 mm
Fuel Tank Capacity 40 Gal 151 L
Notes: DOT Certified Trailer, 40 GAL Fuel Tank and 3" Pintle Hitch
Dimensions & Weights
Overall Length 125 in 3175 mm
Overall Width 64 in 1626 mm
Overall Height 70 in 1778 mm
Operating Weight 2850 lb 1293 kg
Notice: Features and equipment specifications are subject to change without notice.
