Haugen MASPR 812 - 580 lbs., 10000 lbs Lifting Capacity Center Position Single Point Load Adjustable Spreader Bar for Telehandler

Haugen  MASPR 812 - 580 lbs., 10000 lbs Lifting Capacity Center Position Single Point Load Adjustable Spreader Bar for Telehandler

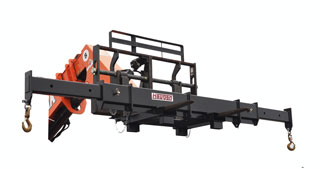

This Adjustable Spreader Bar is a versatile and reliable tool designed to get the job done. With its adjustable design, you can ensure your loads are held safely and securely while in transit. The fork pockets fit tines up to 3.50" x 7.50" wide, so you know your load will be handled with stability and precision. It comes equipped with two 5 ton swivel hooks and secures to your Fork Tines with a pin, allowing for easy installation and removal. Finally, it has three available sizes of 8’ to 12’, 10’ to 15’, or 13' to 20', so you can use it for any size job whether big or small.

Adjustable Spreader Bar

• The fork pockets hold the Spreader Bar at 24" on center
• Comes equipped with two 5 ton swivel hooks
• Fork Pockets fit tines up to 3.50" x 7.50" wide
• Secures to your Fork Tines with a pin.
• Available sizes, 8' to 12' , 10' to 15' , and 13' to 20'

• MASPR 812

  Spread	Lifting Capacity	Weight
  Center Position - Single Point Load	10,000 lbs.	580 lbs.
  Point Loads @ 65.375" spread position	5,000 x 2 = 10,000 lbs.
  Point Loads @ 97.88" spread position	4,000 x 2 = 8,000 lbs.
  Point Loads @ 121.88" spread position	3,500 x 2 = 7,000 lbs.
  Point Loads @ 145.88" spread position	3,000 x 2 = 6,000 lbs.

• MASPR 1015

  Spread	Lifting Capacity	Weight
  Center Position - Single Point Load	10,000 lbs.	685 lbs.
  Point Loads @ 65.375" spread position	5,000 x 2 = 10,000 lbs.
  Point Loads @ 89.00" spread position	5,000 x 2 = 10,000 lbs.
  Point Loads @ 120.00" spread position	4,000 x 2 = 8,000 lbs.
  Point Loads @ 150.00" spread position	3,500 x 2 = 7,000 lbs.
  Point Loads @ 180.00" spread position	3,000 x 2 = 6,000 lbs.

  MASPR 1320

  Spread	Lifting Capacity	Weight
  Center Position - Single Point Load	10,000 lbs.	875 LBS
  Point Loads @ 65.375" spread position	5,000 x 2 = 10,000 lbs.
  Point Loads @ 110.00" spread position	4,000 x 2 = 8,000 lbs.
  Point Loads @ 162.00" spread position	3,500 x 2 = 7,000 lbs.
  Point Loads @ 201.00" spread position	3,000 x 2 = 6,000 lbs.
  Point Loads @ 240.00" spread position	2,250 x 2 = 4,500 lbs.

Documents

• MSPR 72 Owners Manual (PDF, 997 KB)
• MASPR 812 Owners Manual (PDF, 1,346 KB)
• MASPR 1015 Owners Manual (PDF, 1,192 KB)
• MASPR 1320 Owners Manual (PDF, 1,542 KB)
