ST61230 / ST61460 6” NPT Discharge 674 GPM - 105’ HEAD The ST61 Series provides exceptional flow output,durability, in an overall compact package. High performance and operating value is achieved through an oil free motor, thermal/ over current motor protection, dynamically balanced high chrome impeller, heat-treated stainless steel 410 shaft, double mechanical seals, and rigid corrosion resistant stainless steel outer casing and strainer. Passes solids up to ½”, lifting eyelets and comes with a molded 33’ power cable w/ strain relief. The pump handles fluid up to 140° F. Depending on your electrical source, there are two 6” discharge model pumps: 230V 3Ø or 460V 3Ø. A control box is required to provide safe ON/OFF functioning, overload safety shut downs that are thermal & voltage related, and proper conduits to assist in powering float switches. MQ offers the CB126974 control box to support the ST61230 and CB145663 Control Box to support the ST61460
ST61460 Pump Performance Curve 6” Discharge
Multiquip Submersible Pump for Construction & Municipal Industrial Applications
ST61230 / ST61460 6” NPT Discharge 674 GPM - 105’ HEAD The ST61 Series provides exceptional flow output,durability, in an overall compact package. High performance and operating value is achieved through an oil free motor, thermal/ over current motor protection, dynamically balanced high chrome impeller, heat-treated stainless steel 410 shaft, double mechanical seals, and rigid corrosion resistant stainless steel outer casing and strainer. Passes solids up to ½”, lifting eyelets and comes with a molded 33’ power cable w/ strain relief. The pump handles fluid up to 140° F. Depending on your electrical source, there are two 6” discharge model pumps: 230V 3Ø or 460V 3Ø. A control box is required to provide safe ON/OFF functioning, overload safety shut downs that are thermal & voltage related, and proper conduits to assist in powering float switches. MQ offers the CB126974 control box to support the ST61230 and CB145663 Control Box to support the ST61460
ST61460 Pump Performance Curve 6” Discharge
Multiquip Submersible Pump for Construction & Municipal Industrial Applications

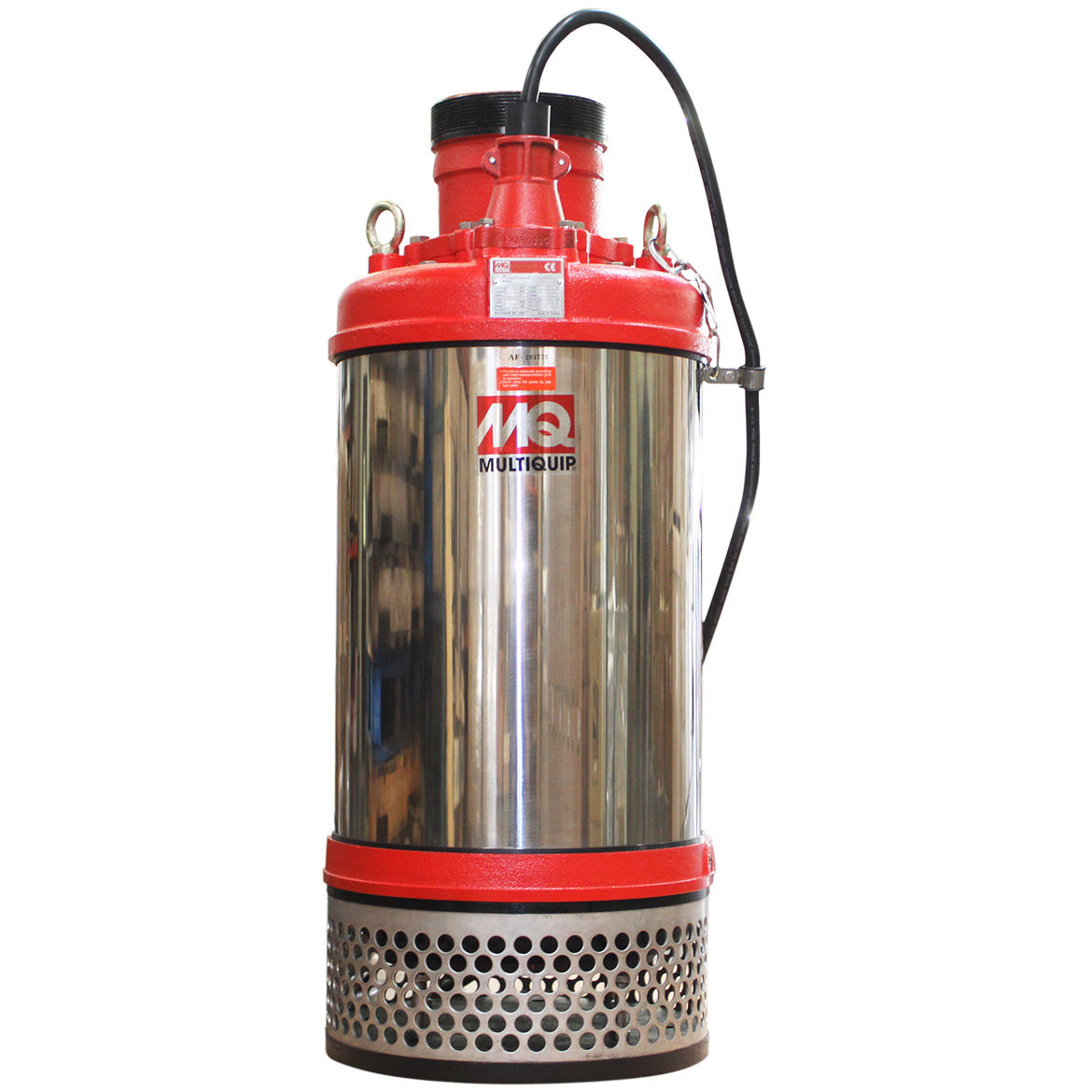

Multiquip ST61230 - Pump-Sub 6 15HP 230V 674GPM 3

(No reviews) Write a Review
$7,063.00
$5,340.32
SKU: ST61230
Availability: Shipping to a US 48 state business address.
Weight: 301.00 LBS
Shipping: $437.91 (Fixed Shipping Cost)
Adding to cart… The item has been added
Multiquip ST61230 - Pump-Sub 6 15HP 230V 674GPM 3

Multiquip ST61230 - Pump-Sub 6 15HP 230V 674GPM 3

$7,063.00
$5,340.32
Description
Multiquip #ST61230 - Pump-Sub 6 15HP 230V 674GPM 3
This 15HP Submersible Centrifugal Pump delivers 674 GPM, featuring a stainless steel housing, oil-filled double mechanical seals, and a high-chrome impeller for heavy-duty performance in contractor, utility, and municipal applications. Designed for low maintenance and safe operation with a control box, it ensures thermal and voltage overload protection. Order today for reliable, high-capacity water pumping.
Features
  • 15.0HP, 230/460V, three-phase, 60 Hz.
  • Running AMPS : 43A (230V) / 21.5A (460V).
  • FLOW Capacity: 674 GPM .
  • HEAD: 105’.
  • Pump Diameter: 14.0”
  • Weight: 301 lbs.
  • Passes up to .6” spherical solids.
  • 6” NPT Male Discharge Port.
  • Reliable double mechanical oil-filled seals.
  • Easy Impeller Clean-out.
  • Output shaft is heat-treated 410 Stainless Steel.
  • Suction Strainer – Stainless Steel (304).
  • Pumps Liquid Up To 140° F – pH 4-10.
  • 33’ of molded power cord w/strain relief.
  • Optional Control Box Model: CB1274 for 230V
  • Optional Control Box Model: CB1463 for 460V
Unit Specifications
Impeller Type High Chrome Steel
Impeller Disc Size 6 in 150 mm
Total Head 105 ft 32 m
Water Capacity 674 gpm 2494 lpm
Max. Solid Intake .6 in 15 mm
Electrical Specifications
Power 15 HP 11 kW
Phase Three
Voltage 230/460 V
Starting Amperage 230V/258 A / 460V/129 A
Running Amperage 230V/43A / 460V/21.5 A
Cable Length 33 ft 10 m
Dimensions & Weights
Pump Diameter 14 in 356 mm
Overall Height 34 in 864 mm
Operating Weight 301 lb 135 kg
Notice: Features and equipment specifications are subject to change without notice.
