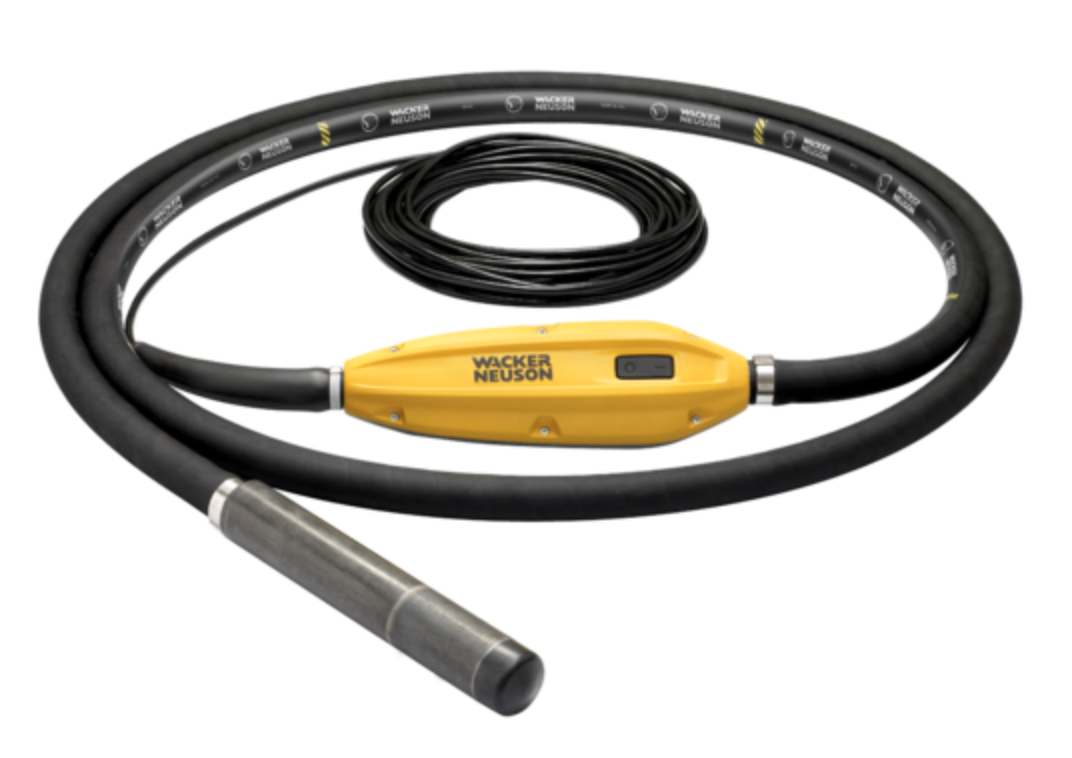

Wacker Neuson IEC58 - Electric internal vibrator with integrated frequency converter for concrete consolidation. Protection hose length 9.8 ft

(No reviews) Write a Review
$1,865.00
$1,328.00
SKU: 5100036229
Availability: Shipping to a US 48 State Address
Weight: 32.09 LBS
Shipping: $54.00 (Fixed Shipping Cost)
Adding to cart… The item has been added
Wacker Neuson IEC58 - Electric internal vibrator with integrated frequency converter for concrete consolidation. Protection hose length 9.8 ft

Wacker Neuson IEC58 - Electric internal vibrator with integrated frequency converter for concrete consolidation. Protection hose length 9.8 ft

$1,865.00
$1,328.00

Wacker Neuson IEC58 - High Frequency Concrete Vibrator w/120v, 2-1/4'' head & 10 ft shaft

The Wacker Neuson IEC58 High Frequency Concrete Vibrator is perfect for concrete consolidation. With its integrated frequency converter, this vibrator is easy to handle and compensates for voltage fluctuations, making it a great choice for any construction or renovation project. The wear-resistant vibrator head is made of steel and hardened in the front third, so it can withstand even the most strenuous applications. And if anything goes wrong, the entire vibrator head can be replaced without having to worry about individual parts. Plus, with its ergonomically shaped switch box, this vibrator is comfortable to use even during extended periods of time.

Features

  • High frequency internal vibrator
  • Integrated frequency converter, therefore two pieces of equipment in one for convenient handling and compensation for fluctuating input voltages. No external converter required.
  • Complete potted electronic components for a long service life
  • Wear resistant vibrator head made of steel, hardened in the front third
  • Entire vibrator head can be replaced, no individual parts
  • Ergonomically shaped switch box
  • RPM-stable, powerful electric motor designed, developed and produced in-house - Made in Germany
  • Power cable made of cut and abrasion-resistant polyurethane



OPERATING FLUIDS

Metric

Imperial

Oil volume

0,008 l

0,002 gal US

Oil specification

Klüberoil 4UH1-46N

Klüberoil 4UH1-46N



MOTOR

Metric

Imperial

Motor type

asynchronous motor

asynchronous motor



MECHANICAL - OUTPUT DETAILS

Metric

Imperial

Vibrations

12.000 1/min

12.000 1/min

Vibrations (Hz)

200,0 Hz

200,0 Hz

Amplitude at air

2,90 mm

0,114 "



ELECTRICAL - OUTPUT DETAILS

Metric

Imperial

Nominal current

10,00 A

10,00 A

Phase

1 ~

1 ~

Nominal voltage

120 V

120 V

Nominal frequency

50 - 60 Hz

50 - 60 Hz

Nominal power [P]

0,72 kW

0,72 kW



ELECTRICAL SYSTEM

Metric

Imperial

Integrated transformer

yes

yes

Kind of plug

NEMA 5-15P (Type B)

NEMA 5-15P (Type B)

Length Cable

5,00 m

16,4 Foot

Breaker Switch On/Off

Yes

Yes



MECHANICAL DETAILS

Metric

Imperial

Rubber cap

no

no

Head diameter/-diagonal

58 mm

2,3 "

Length Head

327 mm

12,9 "

External diameter hose

40 mm

1,6 "

Length Hose

3,00 m

9,8 Foot

Head design

round

round

Weight

14,10 kg

31,09 lb



ENVIRONMENT DATA

Metric

Imperial

Operating temperature range

-10 - 40 °C

14 - 104 °F

Sound level LpA (Standard)

EN 12649

EN 12649

Protection class

I / Protective earthing

I / Protective earthing

Vibration total value ahv

2,7 m/s2

8,9 ft/s2

Storage temperature range

-20 - 60 °C

-4 - 140 °F

Uncertainty in measurement HAV

0,5 m/s2

1,6 ft/s2

Sound level LpA

79,0 dB(A)

79,0 dB(A)

Degree of protection

IP67

IP67

Measuring method LpA

LPA1m

LPA1m



Custom Attributes

Metric

Imperial

Model serie

IE
