Wacker Neuson IEC58 - Electric internal vibrator with Integrated Frequency Converter for Concrete Consolidation. Protection Hose Length 26.2 ft.
Write a Review
Wacker Neuson
Wacker Neuson IEC58 - Electric internal vibrator with Integrated Frequency Converter for Concrete Consolidation. Protection Hose Length 26.2 ft.
Wacker Neuson IEC58 - Electric internal vibrator with Integrated Frequency Converter for Concrete Consolidation. Protection Hose Length 26.2 ft.
Wacker Neuson IEC58 - Electric internal vibrator with Integrated Frequency Converter for Concrete Consolidation. Protection Hose Length 26.2 ft.

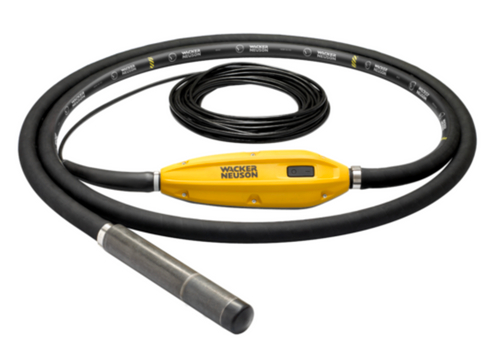

The Wacker Neuson IEC58/120/8 (120V) Internal Vibrator features a 2-1/4” (58 mm) head and a 26 ft (8 m) shaft for extended reach in concrete vibration applications. Its integrated frequency converter ensures stable performance and consistent speed under load. This electric internal vibrator provides reliable, efficient operation for both indoor and outdoor concrete work.
Features
- High-frequency internal vibrator
- Integrated frequency converter, therefore two pieces of equipment in one for convenient handling and compensation for fluctuating input voltages. No external converter required.
- Complete potted electronic components for a long service life
- Wear-resistant vibrator head made of steel, hardened in the front third
- The entire vibrator head can be replaced; there are no individual parts
- Ergonomically shaped switch box
- RPM-stable, powerful electric motor designed, developed, and produced in-house - Made in Germany
- Power cable made of cut and abrasion-resistant polyurethane
|
OPERATING FLUIDS |
Metric |
Imperial |
|
Oil volume |
0,008 l |
0,002 gal US |
|
Oil specification |
Klüberoil 4UH1-46N |
Klüberoil 4UH1-46N |
|
MOTOR |
Metric |
Imperial |
|
Motor type |
asynchronous motor |
asynchronous motor |
|
MECHANICAL - OUTPUT DETAILS |
Metric |
Imperial |
|
Vibrations |
12.000 1/min |
12.000 1/min |
|
Vibrations (Hz) |
200,0 Hz |
200,0 Hz |
|
Amplitude at air |
2,90 mm |
0,114 " |
|
ELECTRICAL - OUTPUT DETAILS |
Metric |
Imperial |
|
Nominal current |
10,00 A |
10,00 A |
|
Phase |
1 ~ |
1 ~ |
|
Nominal voltage |
120 V |
120 V |
|
Nominal frequency |
50 - 60 Hz |
50 - 60 Hz |
|
Nominal power [P] |
0,72 kW |
0,72 kW |
|
ELECTRICAL SYSTEM |
Metric |
Imperial |
|
Integrated transformer |
yes |
yes |
|
Kind of plug |
NEMA 5-15P (Type B) |
NEMA 5-15P (Type B) |
|
Length Cable |
5,00 m |
16,4 Foot |
|
Breaker Switch On/Off |
Yes |
Yes |
|
ENVIRONMENT DATA |
Metric |
Imperial |
|
Operating temperature range |
-10 - 40 °C |
14 - 104 °F |
|
Sound level LpA (Standard) |
EN 12649 |
EN 12649 |
|
Protection class |
I / Protective earthing |
I / Protective earthing |
|
Vibration total value ahv |
2,7 m/s2 |
8,9 ft/s2 |
|
Storage temperature range |
-20 - 60 °C |
-4 - 140 °F |
|
Vibration value (Standard) |
DIN EN ISO 20643 |
DIN EN ISO 20643 |
|
Uncertainty in measurement HAV |
0,5 m/s2 |
1,6 ft/s2 |
|
Sound level LpA |
79,0 dB(A) |
79,0 dB(A) |
|
Degree of protection |
IP67 |
IP67 |
|
Measuring method LpA |
LPA1m |
LPA1m |
|
MECHANICAL DETAILS |
Metric |
Imperial |
|
Rubber cap |
no |
no |
|
Head diameter/-diagonal |
58 mm |
2,3 " |
|
Length Head |
327 mm |
12,9 " |
|
External diameter hose |
40 mm |
1,6 " |
|
Length Hose |
8,00 m |
26,2 Foot |
|
Head design |
round |
round |
|
Weight |
19,20 kg |
42,33 lb |
|
Custom Attributes |
Metric |
Imperial |
|
Model serie |
IE |
Related Products
Wacker Neuson IEC58 - Electric internal vibrator with integrated frequency converter for concrete consolidation. Protection hose length 9.8 ft
Wacker Neuson IEC45 - Electric internal vibrator with integrated frequency converter for concrete consolidation. Protection hose length 26.2 ft.
Wacker Neuson IEC45 - Electric internal vibrator with integrated frequency converter for concrete consolidation. Protection hose length 9.8 ft.

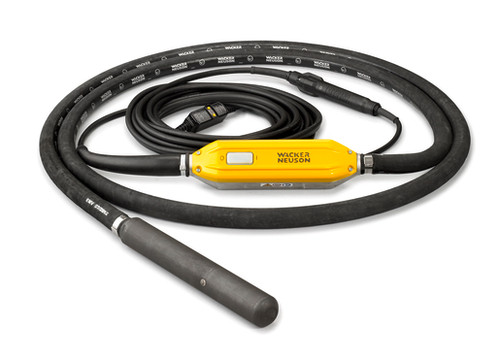

Wacker Neuson IRFU65 - Electric Internal Vibrator with 115V, 2-1/2” Head, 26 ft Shaft & Integrated Frequency Converter for Concrete Consolidation.
