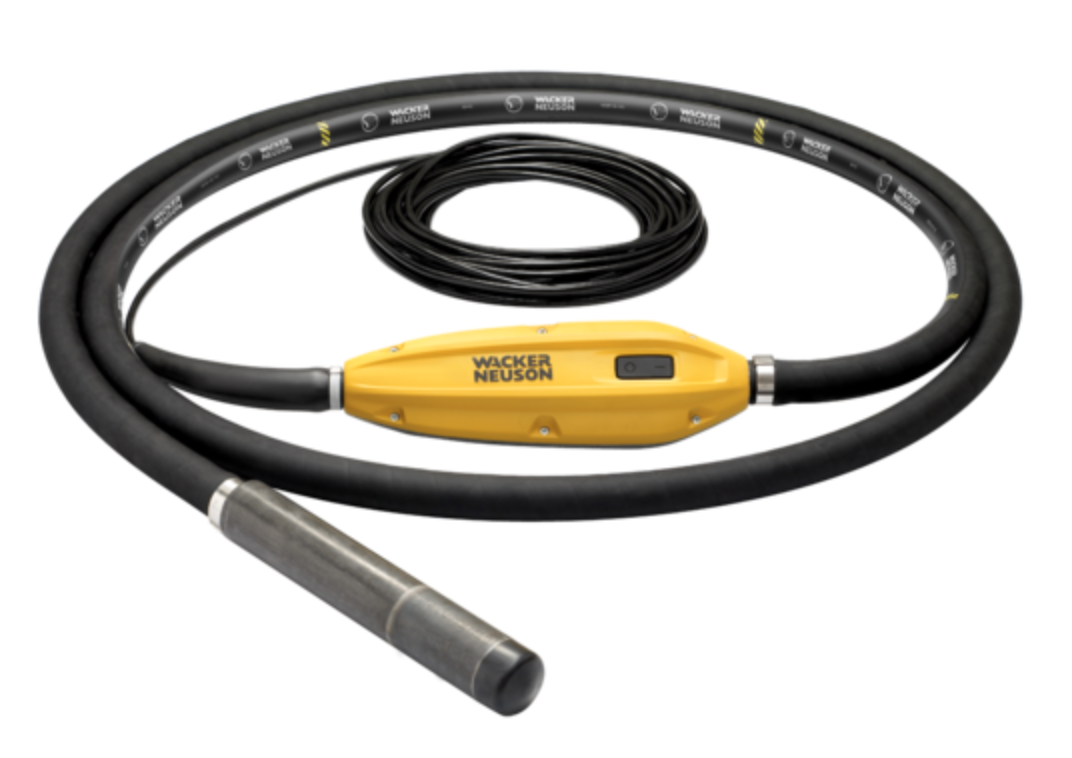

Wacker Neuson IEC45 - Electric internal vibrator with integrated frequency converter for concrete consolidation. Protection hose length 26.2 ft.
Write a Review
Wacker Neuson
Wacker Neuson IEC45 - Electric internal vibrator with integrated frequency converter for concrete consolidation. Protection hose length 26.2 ft.
Wacker Neuson IEC45 - Electric internal vibrator with integrated frequency converter for concrete consolidation. Protection hose length 26.2 ft.
Wacker Neuson IEC45 - Electric internal vibrator with integrated frequency converter for concrete consolidation. Protection hose length 26.2 ft.
The Wacker Neuson IEC45 High Frequency Concrete Vibrator is an electric internal vibrator with an integrated frequency converter, making it ideal for concrete consolidation. The protection hose length is 315 inches, and the high frequency internal vibrator has complete potted electronic components for a long service life. Additionally, the wear-resistant vibrator head is made of steel and hardened in the front third. And if necessary, the entire vibrator head can be replaced - no need to replace individual parts. Finally, the ergonomically shaped switch box ensures that the vibe is rpm-stable.
Features
- High frequency internal vibrator
- Integrated frequency converter, therefore two pieces of equipment in one for convenient handling and compensation for fluctuating input voltages. No external converter required.
- Complete potted electronic components for a long service life
- Wear resistant vibrator head made of steel, hardened in the front third
- Entire vibrator head can be replaced, no individual parts
- Ergonomically shaped switch box
- RPM-stable, powerful electric motor designed, developed and produced in-house - Made in Germany
- Power cable made of cut and abrasion-resistant polyurethane
| OPERATING FLUIDS | Metric | Imperial |
| Oil volume | 0,006 l | 0,002 gal US |
| Oil specification | Klüberoil 4UH1-46N | Klüberoil 4UH1-46N |
| MOTOR | Metric | Imperial |
| Motor type | asynchronous motor | asynchronous motor |
| MECHANICAL - OUTPUT DETAILS | Metric | Imperial |
| Vibrations | 12.000 1/min | 12.000 1/min |
| Vibrations (Hz) | 200,0 Hz | 200,0 Hz |
| Amplitude at air | 2,30 mm | 0,091 " |
| ELECTRICAL - OUTPUT DETAILS | Metric | Imperial |
| Nominal current | 8,00 A | 8,00 A |
| Phase | 1 ~ | 1 ~ |
| Nominal voltage | 120 V | 120 V |
| Nominal frequency | 50 - 60 Hz | 50 - 60 Hz |
| Nominal power [P] | 0,56 kW | 0,56 kW |
| ELECTRICAL SYSTEM | Metric | Imperial |
| Integrated transformer | yes | yes |
| Kind of plug | NEMA 5-15P (Type B) | NEMA 5-15P (Type B) |
| Length Cable | 5,00 m | 16,4 Foot |
| Breaker Switch On/Off | Yes | Yes |
| MECHANICAL DETAILS | Metric | Imperial |
| Rubber cap | no | no |
| Head diameter/-diagonal | 45 mm | 1,8 " |
| Length Head | 320 mm | 12,6 " |
| External diameter hose | 31 mm | 1,2 " |
| Length Hose | 8,00 m | 26,2 Foot |
| Head design | round | round |
| Weight | 14,60 kg | 32,19 lb |
| ENVIRONMENT DATA | Metric | Imperial |
| Operating temperature range | -10 - 40 °C | 14 - 104 °F |
| Sound level LpA (Standard) | EN 12649 | EN 12649 |
| Protection class | I / Protective earthing | I / Protective earthing |
| Vibration total value ahv | 2,7 m/s2 | 8,9 ft/s2 |
| Storage temperature range | -20 - 60 °C | -4 - 140 °F |
| Vibration value (Standard) | DIN EN ISO 20643 | DIN EN ISO 20643 |
| Uncertainty in measurement HAV | 0,5 m/s2 | 1,6 ft/s2 |
| Sound level LpA | 79,0 dB(A) | 79,0 dB(A) |
| Degree of protection | IP67 | IP67 |
| Measuring method LpA | LPA1m | LPA1m |
| Custom Attributes | Metric | Imperial |
| Model serie | IE |
