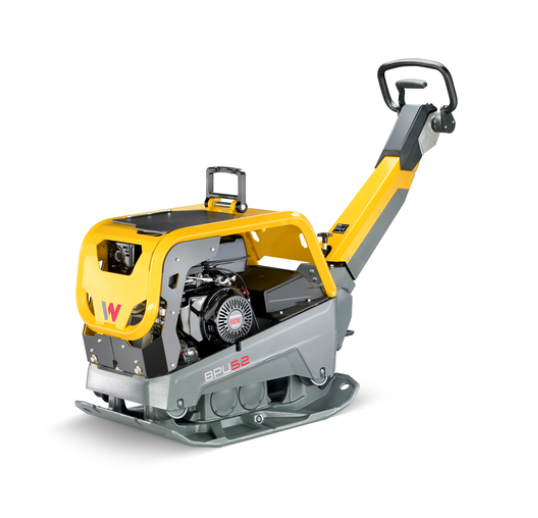

Wacker Neuson BPU5260Ah - Reversible Vibratory Plate with a Honda Engine 23.6" width, 11.690 lbf
Wacker Neuson BPU5260Ah - Reversible Vibratory Plate with a Honda Engine 23.6" width, 11.690 lbf
Wacker Neuson BPU5260Ah - Reversible Vibratory Plate with a Honda Engine 23.6" width, 11.690 lbf
The Wacker Neuson BPU5260Ah is a powerful and versatile vibratory plate that can be used for compaction of soil, asphalt, and paving stones. With a width of 23.6 inches, this reversible plate compactor can cover large areas quickly, and the 11,690 lb centrifugal force ensures that the job gets done right. The Wacker Neuson BPU5260Ah also features a reliable Honda engine, Low hand-arm-vibrations, and an intuitive safety feature. This plate is reversible, making the job easier and faster.
Highlights
•Optimum control and ergonomics
•Low HAV (< 2.5 m/s²)
•Compamatic
•Digital machine control
•Easy cleaning due to open base plate
|
OPERATING FLUIDS |
Metric |
Imperial |
|
Tank capacity |
6,10 l |
1,6 gal US |
|
Exciter oil volume |
0,75 l |
0,79 qt US |
|
Hydraulic fluid type |
Renolin MR 520 |
Renolin MR 520 |
|
Hydraulic fluid volume |
0,500 l |
0,5 qt US |
|
Exciter oil type |
75W-90 API GL-4 |
75W-90 API GL-4 |
|
ENGINE |
Metric |
Imperial |
|
Fuel management |
Carburettor |
Carburettor |
|
Inclined position max. |
20,0 ° |
20,0 ° |
|
Engine operating mode |
four-stroke |
four-stroke |
|
Operating Engine speed |
2.800 1/min |
2.800 1/min |
|
Fuel consumption |
2,00 L/Std |
0,5 GPH US |
|
CO2 (NRSC) |
743,00 g/KWh |
743,00 g/KWh |
|
Standard (Power max.) |
SAE J1349 |
SAE J1349 |
|
Standard (Effective power) |
SAE J1349 |
SAE J1349 |
|
Nominal Engine speed |
3.000 1/min, 3.600 1/min |
3.000 1/min, 3.600 1/min |
|
Oil filling max. |
1,10 l |
0,3 gal US |
|
Effective power |
8,2 kW, 8,7 kW |
11,0 hp, 11,7 hp |
|
Battery capacity (nom. value) |
0 Ah |
0 Ah |
|
Air cleaner |
Dry air filter |
Dry air filter |
|
Power rating max. |
8,7 kW |
11,7 hp |
|
fuel type |
Gasoline |
Gasoline |
|
Cooling |
air cooling |
air cooling |
|
Exhaust-gas limit |
EU Stage V, US Phase 3 |
EU Stage V, US Phase 3 |
|
Oil specification |
SAE 10W-30 |
SAE 10W-30 |
|
Starter battery Voltage |
0 V |
0 V |
|
Engine speed (Power max.) |
3.600 1/min |
3.600 1/min |
|
Starter type |
Recoil starter |
Recoil starter |
|
Operating power |
7,8 kW |
10,5 hp |
|
Oil filling min. |
1,10 l |
0,3 gal US |
|
Engine type |
Gasoline engine |
Gasoline engine |
|
Cylinder |
1 |
1 |
|
Engine Manufacturer |
Honda |
Honda |
|
Standard (Operating power) |
ISO 3046 IFN |
ISO 3046 IFN |
|
Cylinder capacity |
389 cm3 |
23,7 Inch3 |
|
Spark plug(s) |
Denso W20EPR-U, NGK BPR-6 ES |
Denso W20EPR-U, NGK BPR-6 ES |
|
Oil volume incl. filter change |
1,10 l |
0,3 gal US |
|
MECHANICAL - OUTPUT DETAILS |
Metric |
Imperial |
|
Vibrations |
4.140 1/min |
4.140 1/min |
|
Forward running |
26,00 m/min |
1,4 fps |
|
Transmission |
FKR |
FKR |
|
Centrifugal force |
52,000 kN |
11.690 lbf |
|
Vibrations (Hz) |
69,0 Hz |
69,0 Hz |
|
Area capacity |
733 m2/h |
7.890,0 ft2/h |
|
ELECTRICAL SYSTEM |
Metric |
Imperial |
|
Electrode distance |
0,70 - 0,80 mm |
0,028 - 0,032 " |
|
MECHANICAL DETAILS |
Metric |
Imperial |
|
Lenght Drawbar in op. pos. |
1.780 mm |
70,1 " |
|
Operating weight |
373,0 kg |
822,3 lb |
|
Height |
1.449 mm |
57,0 " |
|
Underclearance |
817 mm |
32,2 " |
|
Width |
600 mm |
23,6 " |
|
ENVIRONMENT DATA |
Metric |
Imperial |
|
Operating temperature range |
-15 - 40 °C |
5 - 104 °F |
|
Sound level LpA (Standard) |
EN 500-4 |
EN 500-4 |
|
Sound power LWA, guaranteed |
108,0 dB(A) |
108,0 dB(A) |
|
Storage temperature range |
-15 - 40 °C |
5 - 104 °F |
|
HAV summation (average value) |
< 2,5 m/s2 |
8,2 ft/s2 |
|
Uncertainty in measurement HAV |
0,5 m/s2 |
1,6 ft/s2 |
|
HAV summation (Standard) |
EN 500-4 |
EN 500-4 |
|
Sound level LpA |
91,0 dB(A) |
91,0 dB(A) |
|
Sound power LWA (Standard) |
EN 500-4 |
EN 500-4 |
|
Sound power LWA, measured |
107,0 dB(A) |
107,0 dB(A) |
