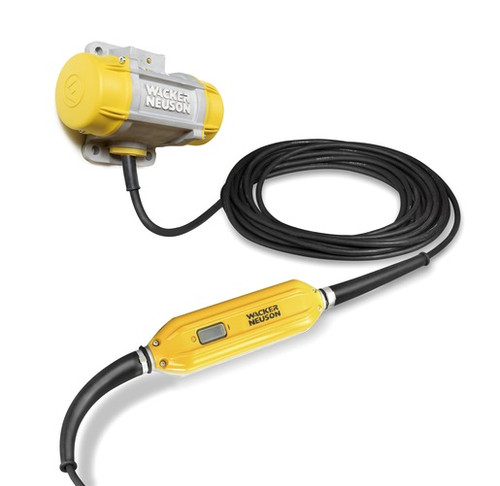

Wacker Neuson ARFU26 External Concrete Vibrator w/ Integrated Frequency Converter - Electric Motor
Write a Review
Wacker Neuson
Wacker Neuson ARFU26 External Concrete Vibrator w/ Integrated Frequency Converter - Electric Motor
Wacker Neuson ARFU26 External Concrete Vibrator w/ Integrated Frequency Converter - Electric Motor
Wacker Neuson ARFU26 External Concrete Vibrator w/ Integrated Frequency Converter - Electric Motor
The Wacker Neuson ARFU 26/6/120 is an external vibrator featuring a built-in frequency converter for precise control. Its variable frequency allows speeds from 0 to 6,000 RPM, ensuring optimal performance for concrete consolidation and other applications. Compatible with 110–130V power supply, this unit offers reliability and efficiency on any job site. Shop now.
- Light and compact
- Universal assembly device for fastening clamps
- RPM-stable, powerful electric motor designed, developed and produced by Wacker Neuson
- Integrated frequency converter
|
MOTOR |
Metric |
Imperial |
|
Motor type |
asynchronous motor |
asynchronous motor |
|
MECHANICAL - OUTPUT DETAILS |
Metric |
Imperial |
|
Vibrations |
6.000 1/min |
6.000 1/min |
|
Centrifugal force |
2,300 kN |
517 lbf |
|
Vibrations (Hz) |
100,0 Hz |
100,0 Hz |
|
Centrifugal force max. |
3,470 kN |
780,09 lbf |
|
ELECTRICAL - OUTPUT DETAILS |
Metric |
Imperial |
|
Nominal current |
3,00 A |
3,00 A |
|
Phase |
1 ~ |
1 ~ |
|
Nominal voltage |
110 - 130 V |
110 - 130 V |
|
Nominal frequency |
50 - 60 Hz |
50 - 60 Hz |
|
Nominal power [P] |
0,28 kW |
0,28 kW |
|
ELECTRICAL SYSTEM |
Metric |
Imperial |
|
Cable definition |
16/3 SOOW, 16 AWG 3 |
16/3 SOOW, 16 AWG 3 |
|
Operating indicator |
yes |
yes |
|
Adjusting frequency |
No |
No |
|
Integrated transformer |
yes |
yes |
|
Kind of plug |
NEMA 5-15P - 14W47 |
NEMA 5-15P - 14W47 |
|
Length Cable |
15,00 m |
49,2 Foot |
|
Cable cross-section |
1,3 mm2 |
0,0 Inch2 |
|
Breaker Switch On/Off |
Yes |
Yes |
|
ENVIRONMENT DATA |
Metric |
Imperial |
|
Operating temperature range |
-10 - 40 °C |
14 - 104 °F |
|
Sound level LpA (Standard) |
DIN EN ISO 11201 |
DIN EN ISO 11201 |
|
Protection class |
I / Protective earthing |
I / Protective earthing |
|
Temperature of body surface |
80 °C |
176,0 °F |
|
Storage temperature range |
-20 - 60 °C |
-4 - 140 °F |
|
Sound level LpA |
70,0 dB(A) |
70,0 dB(A) |
|
Degree of protection |
IP66 |
IP66 |
|
MECHANICAL DETAILS |
Metric |
Imperial |
|
Length |
223 mm |
8,8 " |
|
Height |
102 mm |
4,0 " |
|
Unbalanced mass/side pos2 |
2 |
2 |
|
Unbalanced mass/side pos1 |
6 |
6 |
|
Width |
190 mm |
7,5 " |
|
Weight |
11,64 kg |
25,66 lb |
|
Custom Attributes |
Metric |
Imperial |
|
Model serie |
ARFU26 |
