ST41230 / ST41460 4 Inch Discharge, 230/460 three-phase, 60 Hz 10 HP, 423GPM, 138ft Total Head
ST41230 Pump Performance Curve 4” Discharge

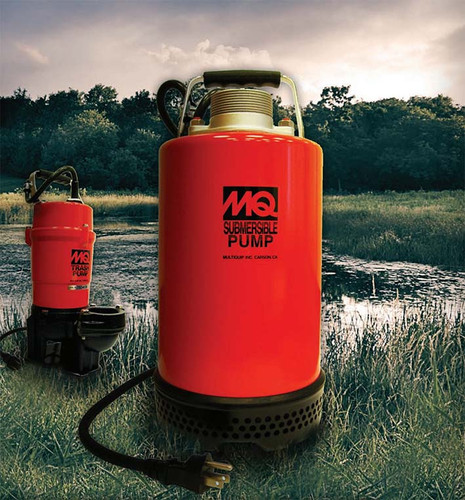

Multiquip Submersible Pump for Construction, Municipal & Industrial Applications
ST41230 / ST41460 4 Inch Discharge, 230/460 three-phase, 60 Hz 10 HP, 423GPM, 138ft Total Head
ST41230 Pump Performance Curve 4” Discharge
Multiquip Submersible Pump for Construction, Municipal & Industrial Applications

Multiquip ST41230 - Submersible Pump, 10.0HP, 230V, three-phase, 60 Hz.

(No reviews) Write a Review
$5,117.00
$3,868.95
SKU: ST41230
Availability: Shipping to a US 48 state business address.
Weight: 205.00 LBS
Shipping: $317.25 (Fixed Shipping Cost)
Adding to cart… The item has been added
Multiquip ST41230 - Submersible Pump, 10.0HP, 230V, three-phase, 60 Hz.

Multiquip ST41230 - Submersible Pump, 10.0HP, 230V, three-phase, 60 Hz.

$5,117.00
$3,868.95
Description
Multiquip ST41230 - Submersible Pump, 10.0HP, 230V, three-phase, 60 Hz.
This 10HP, 230V Submersible Centrifugal Pump delivers reliable water movement in confined and open-area applications, featuring stainless steel housing, oil-filled double mechanical seals, and a high-chrome impeller for durability in contractor, utility, and municipal operations. Compatible with a control box for thermal and voltage overload protection, it ensures safe, low-maintenance performance. Order yours today.
Features
  • 10.0HP, 230V, three-phase, 60 Hz.
  • Running AMPS : 28.6A (230V)
  • FLOW Capacity: 423 GPM.
  • HEAD: 138’.
  • Pump Diameter: 12.5”
  • Weight: 205 lbs.
  • Passes up to .6” spherical solids.
  • 4” NPT Male Discharge Port.
  • Reliable double mechanical oil-filled seals.
  • Easy Impeller Clean-out.
  • Output shaft is heat-treated 410 Stainless Steel.
  • Suction Strainer:  Stainless Steel (304).
  • Pumps Liquid up to 140° F – pH 4-10.
  • 33’ of molded power cord w/strain relief.
  • Optional Control Box Model: CB12A6974 for 230V
  • Optional Control Box Model: CB1456 for 460V



Unit Specifications
Impeller Type High Chrome Steel
Impeller Disc Size 4 in 100 mm
Total Head 138 ft 35 m
Water Capacity 423 gpm 1565 lpm
Max. Solid Intake .6 in 15 mm
Electrical Specifications
Power 10 HP 7.5 kW
Phase Three
Voltage 230/460 V
Starting Amperage 230V/172. A / 460V/85.8 A
Running Amperage 230V/28.6A / 460V/14.3 A
Cable Length 33 ft 10 m
Dimensions & Weights
Pump Diameter 12.5 in 318 mm
Overall Height 32 in 813 mm
Operating Weight 205 lb 93 kg
Notice: Features and equipment specifications are subject to change without notice.
