The Haugen WR-003 - Cat 8 Pin Wire Kits - Required with Hydraulic Angle Brooms for Skid Steer is a top-quality angle broom that will make quick work of any mess. With a 32 inch diameter brush head, it's perfect for tackling even the most stubborn dirt and debris. Plus, it's available in 60", 72", and 84" widths to suit your needs.
The Haugen WR-003 - Cat 8 Pin Wire Kits - Required with Hydraulic Angle Brooms for Skid Steer is a top-quality angle broom that will make quick work of any mess. With a 32 inch diameter brush head, it's perfect for tackling even the most stubborn dirt and debris. Plus, it's available in 60", 72", and 84" widths to suit your needs.

Haugen WR-003 - Cat 8 Pin Wire Kits - Required with Hydraulic Angle Brooms for Skid Steer

(No reviews) Write a Review
$410.00
SKU: H-WR-003
Availability: Shipping to a US 48 State Business Address
Weight: 0.00 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Haugen WR-003 - Cat 8 Pin Wire Kits - Required with Hydraulic Angle Brooms for Skid Steer

Haugen WR-003 - Cat 8 Pin Wire Kits - Required with Hydraulic Angle Brooms for Skid Steer

$410.00
Description

Haugen  WR-003 - Cat 8 Pin Wire Kits - Required with Hydraulic Angle Brooms for Skid Steer

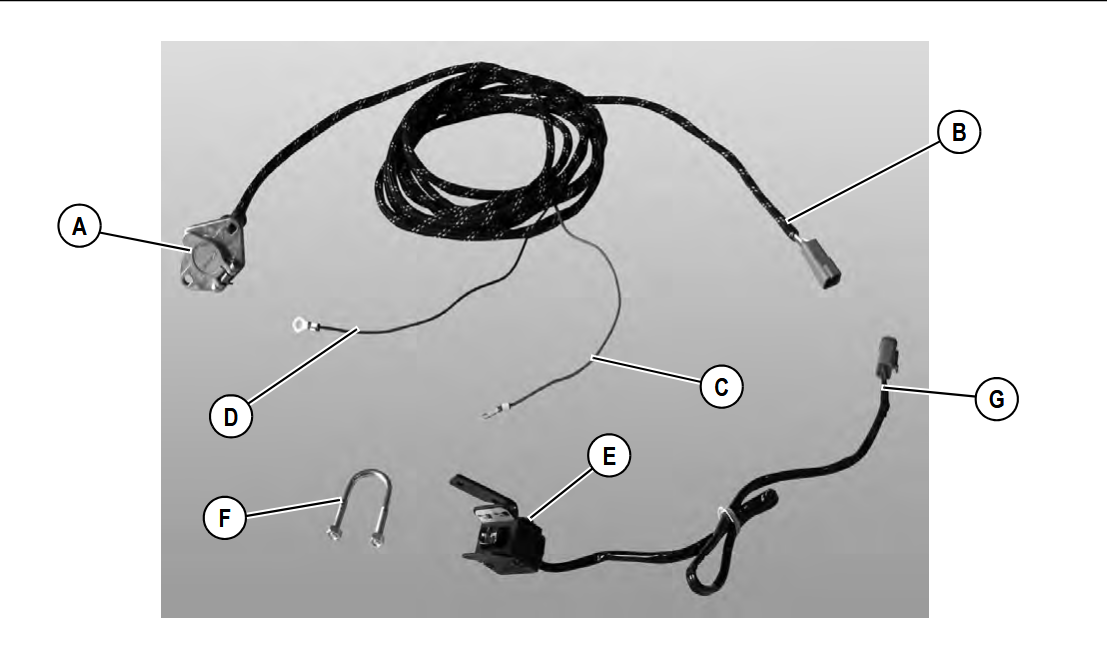

The Haugen WR-003 Cat 8 Pin Wire Kit is required for hydraulic Angle Brooms on Skid Steers, ensuring full functionality and control. Compatible with 60", 72", and 84" Brooms, it supports precise hydraulic angle adjustments while the durable powder coat finish protects against wear. Easy to install and built for reliability, the WR-003 keeps your Angle Broom performing at its best. Order today.

 Angle Brooms

  • 32 inch Diameter Brush.
  • 30 degree Hydraulic angle left and right
  • Built-in leveling system
  • Storage Stands
  • Powder Coat finish
  • Available in 60", 72", and 84" widths.

Options

  •  Poly/Wire Bristles
  •  Manual Angle

Model DescriptionAngled WidthBrush DiameterHyd. Flow Range Weight
HAB 60-M       60" Angle Broom - Manual Angle                   53.75"  32"  15-35 gpm  950 lbs.
HAB 60-H  60" Angle Broom - Hydraulic Angle  53.75"  32"  15-35 gpm  990 lbs.
HAB 72-M  72" Angle Broom - Manual Angle  63.50"  32"  15-35 gpm  1025 lbs.
HAB 72-H  72" Angle Broom - Hydraulic Angle  63.50"  32"  15-35 gpm  1050 lbs.
HAB 84-M  84" Angle Broom - Manual Angle  74.25"  32"  15-35 gpm  1100 lbs
HAB 84-H  84" Angle Broom - Hydraulic Angle  74.25"  32"  15-35 gpm  1150 lbs



MUST PICK ONE!! - Wire Kits - Required with Hydraulic Angle Brooms
WR-001  Standard Wire Harness - Fits most machines (includes toggle switch and wiring)
WR-002  Case 14 Pin
WR-003  Cat 8 Pin
WR-004  Bobcat 7 Pin



Bristle Options - Brooms come standard with all Poly Waffers
HAB-2-001  Half Poly and Half Wire Bristles "price in lieu of all poly"



Water Kit
WK-001 Water Kit with nozzles and hoses



Replacement Waffer Refill Kits
HAB-P-060  Waffer Kit for a 60" Angle Broom (32" diameter ALL POLY Waffers)
HAB-P-072  Waffer Kit for a 72" Angle Broom (32" diameter ALL POLY Waffers)
HAB-P-084  Waffer Kit for a 84" Angle Broom (32" diameter ALL POLY Waffers)
HAB-PW-060  Waffer Kit for a 60" Angle Broom (32" diameter HALF POLY/HALF WIRE Waffers)
HAB-PW-072  Waffer Kit for a 72" Angle Broom (32" diameter HALF POLY/HALF WIRE Waffers)

HAB-PW-084

  Waffer Kit for a 84" Angle Broom (32" diameter HALF POLY/HALF WIRE Waffers)
